LVDTs
LVDTs convert the linear movement of the object it is coupled to, into a corresponding electrical signal.
Our LVDTs cover a huge range of applications between them so you’re sure to find the one that’s ideal for your application or system. Each displacement transducer is highly configurable, with a variety of ranges and environmental protection options to suit your specific requirements. We can offer strain gauge displacement sensors, industrial LVDTs, general purpose and miniature versions.
All our LVDTs are manufactured in the UK at an ISO 9001 accredited facility to ensure top quality build.
-

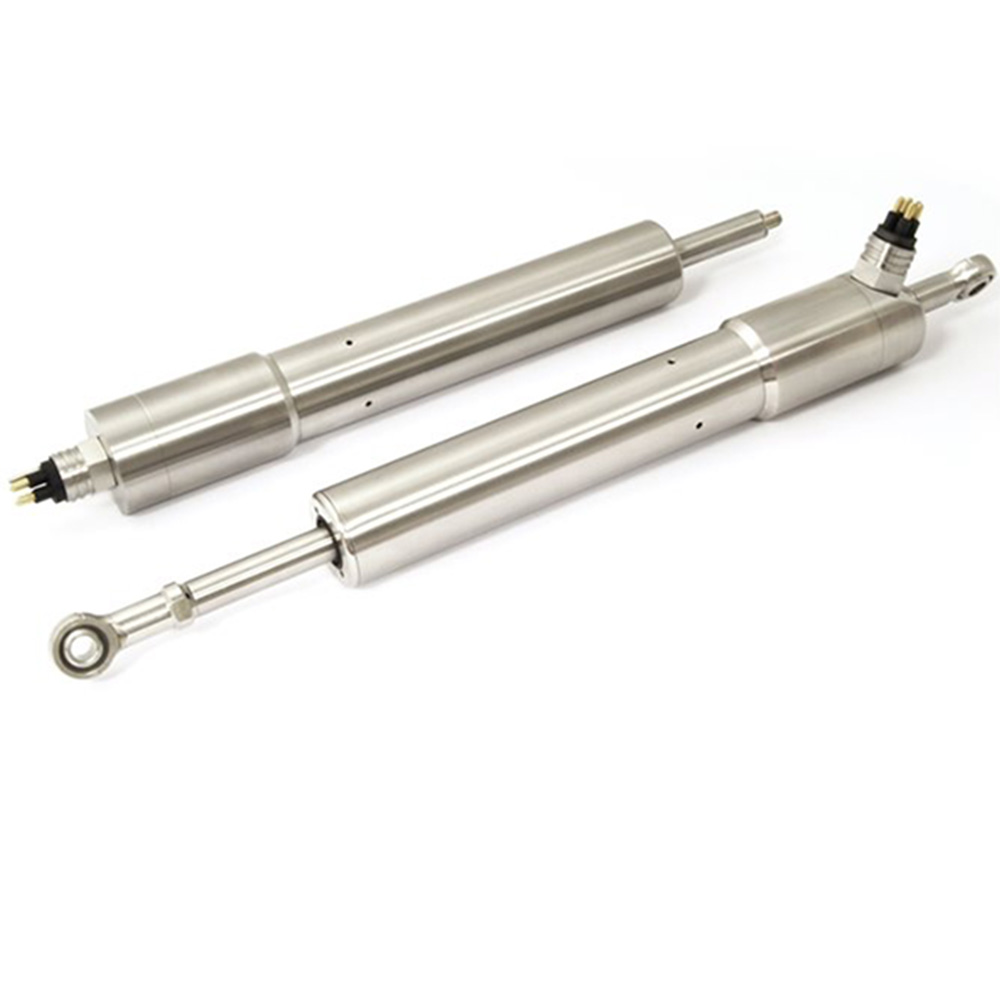

Submersible Subsea Linear Position Sensor | LS25
The LS25 Rugged Submersible Stand-Alone Linear Position Sensor has been specifically designed for demanding marine and subsea applications that require a rugged, waterproof and corrosion-resistant position sensor.
- Ranges: 0-5mm to 0-800 mm
- Outputs: 0.5-4.5Vdc, 4-20mA + more
- Accuracy: <±0.5%/FSO
- Temperature: -4°C to +50°C
- Sealing: IP68 to 350bar
-

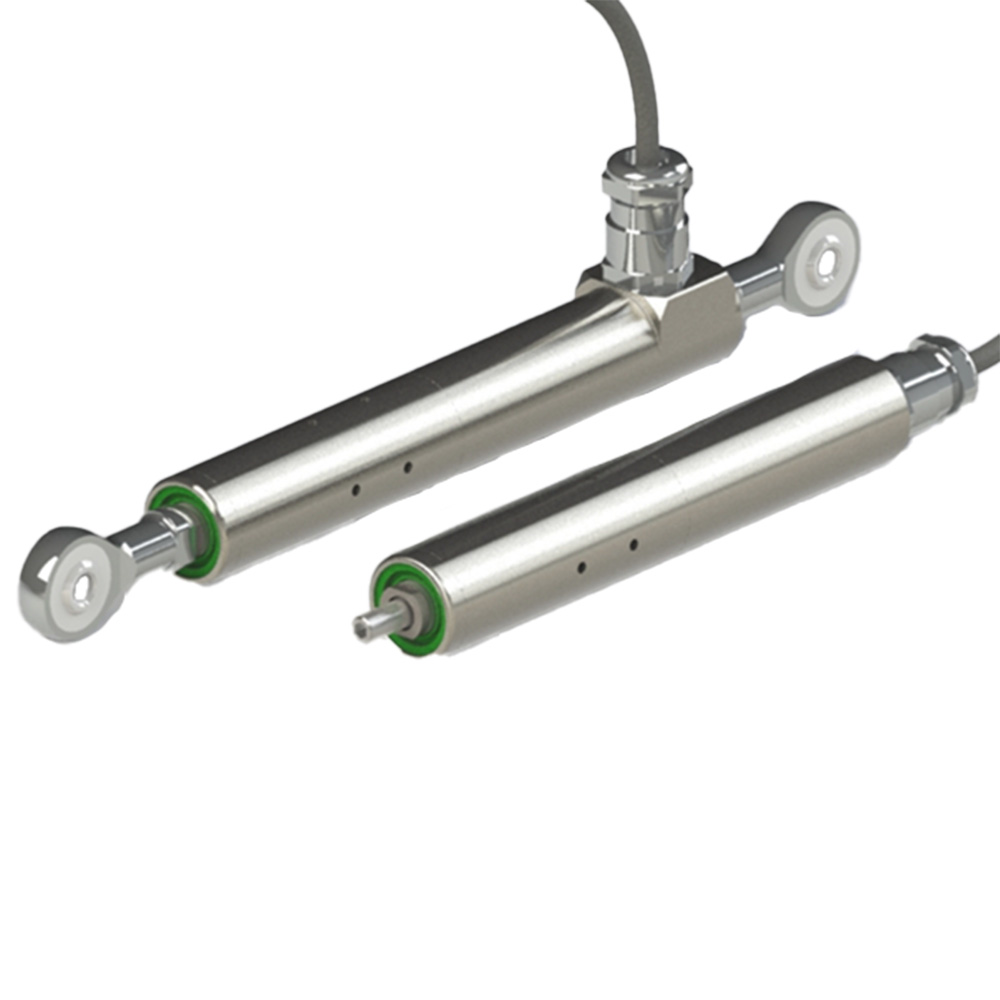

Submersible Slimline Linear Position Sensor | LS19
The LS19 Submersible Slim-Line Linear Position Sensor has been specifically designed for marine applications that require a narrow-bodied, waterproof and corrosion-resistant position sensor.
- Ranges: 0-5mm to 0-350 mm
- Outputs: 0.5-4.5Vdc, 4-20mA + more
- Accuracy: <±0.5%/FSO
- Temperature Range: -20°C to +85°C
- Sealing: IP68 to 10bar / IP69K
-

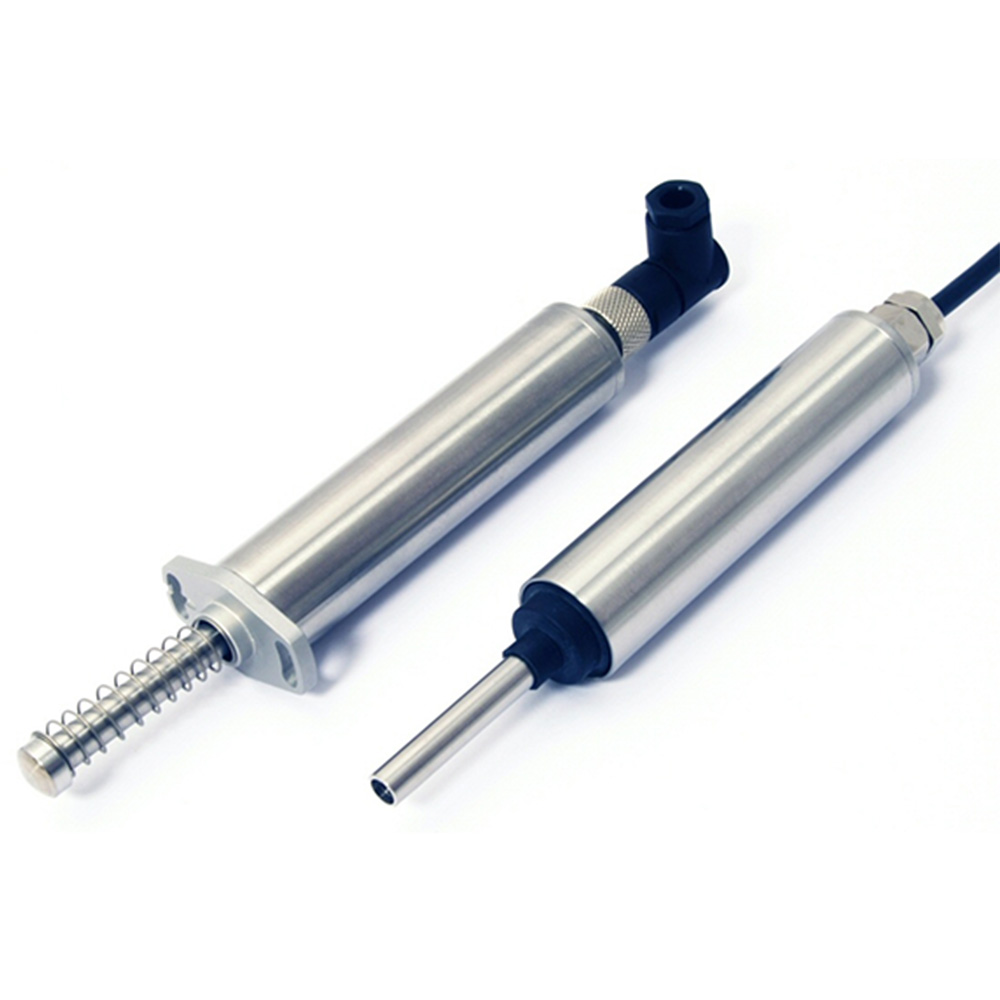

Slimline Short Stroke Linear Position Sensor | LS18
The LS18 Slimline Short Stoke Linear Position Sensor has been specifically designed for industrial and scientific applications that require a narrow bodied and short in length, position sensor.
- Ranges: 0-2mm to 0-50 mm
- Outputs: 0.5-4.5Vdc, 4-20mA + more
- Accuracy: <±0.5%/FSO
- Temperature Range: -20°C to +85°C
- Sealing: IP67
-

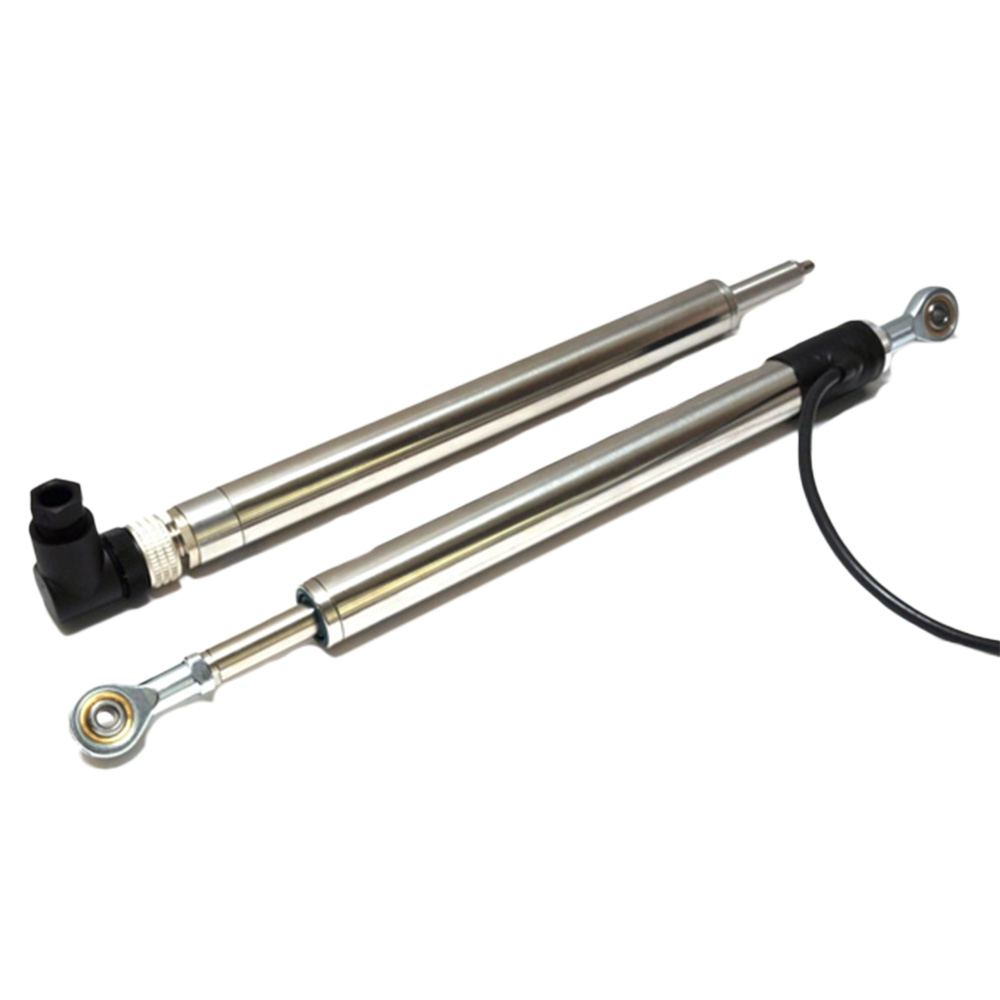

Slimline 19mm Linear Position Sensor | LS17
The LS17 Slimline Linear Position Sensor has been specifically designed for industrial and scientific applications that require a narrow bodied position sensor.
- Ranges: 0-5mm to 0-350 mm
- Outputs: 0.5-4.5Vdc, 4-20mA + more
- Accuracy: <±0.5%/FSO
- Temperature Range: -20°C to +85°C
- Sealing: IP67
-

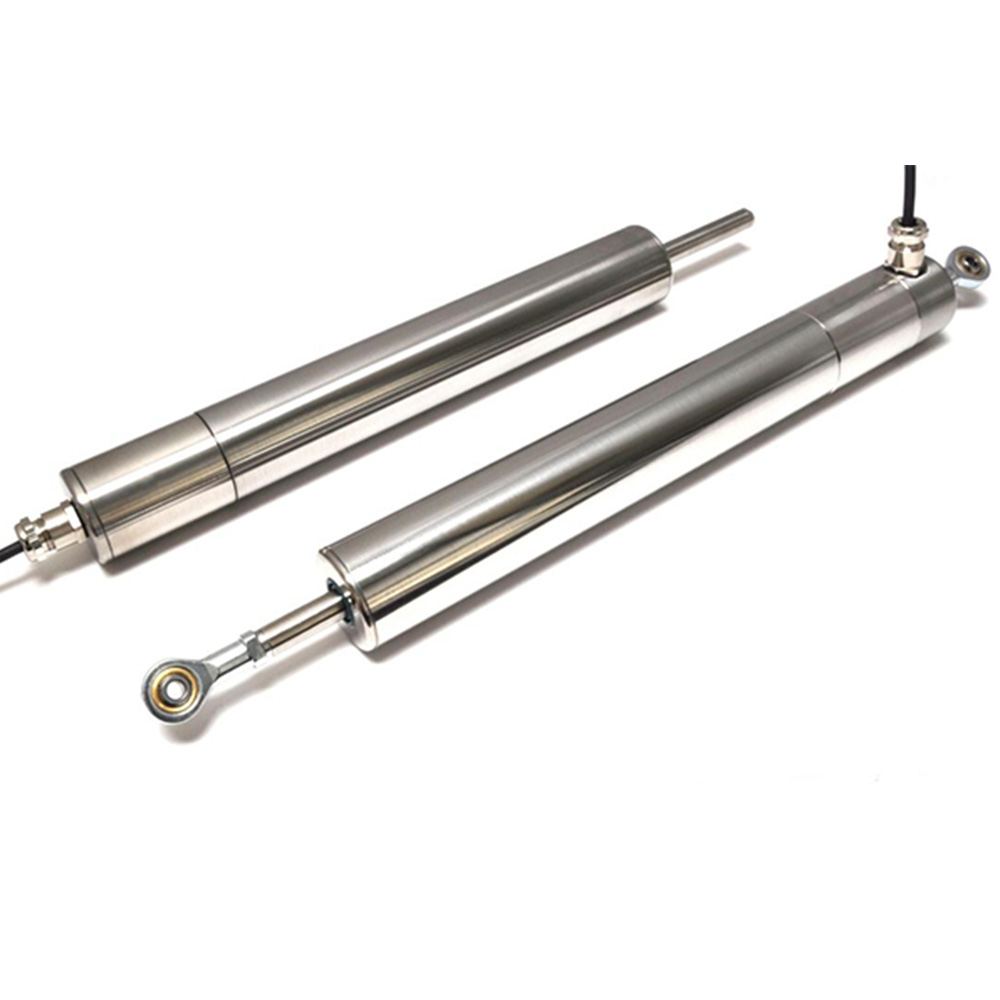

IP68 Submersible Displacement Transducer | LS14
The LS14 Submersible Stand-Alone Linear Position Sensor has been specifically designed for marine applications that require a waterproof and corrosion-resistant position sensor.
- Ranges: 0-5mm to 0-800mm
- Outputs: 0.5-4.5Vdc, 4-20mA + more
- Accuracy: <±0.5%/FSO
- Temperature Range: -20°C to +85°C
- Sealing: IP68 to 10bar / IP69K
-

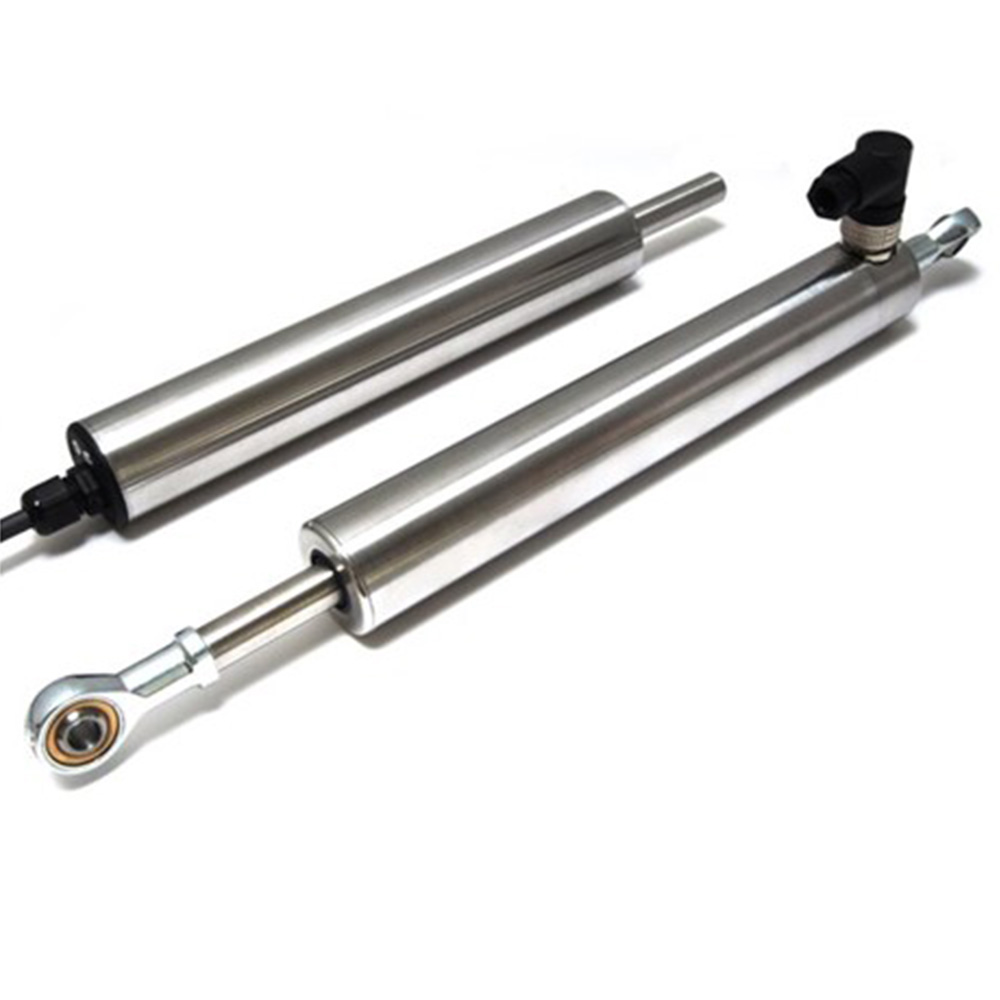

Industrial Linear Position Sensor | LS01
The LS01 Industrial Linear Position Sensor has been specifically designed for industrial and scientific applications where the distance between two reference points needs to be continually mechanically measured within a 0.5% accuracy.
- Ranges: 0-5mm to 0-800 mm
- Outputs: 0.5-4.5Vdc, 4-20mA + more
- Temperature Range: -20°C to +85°C
- Sealing: IP65 or IP67
-

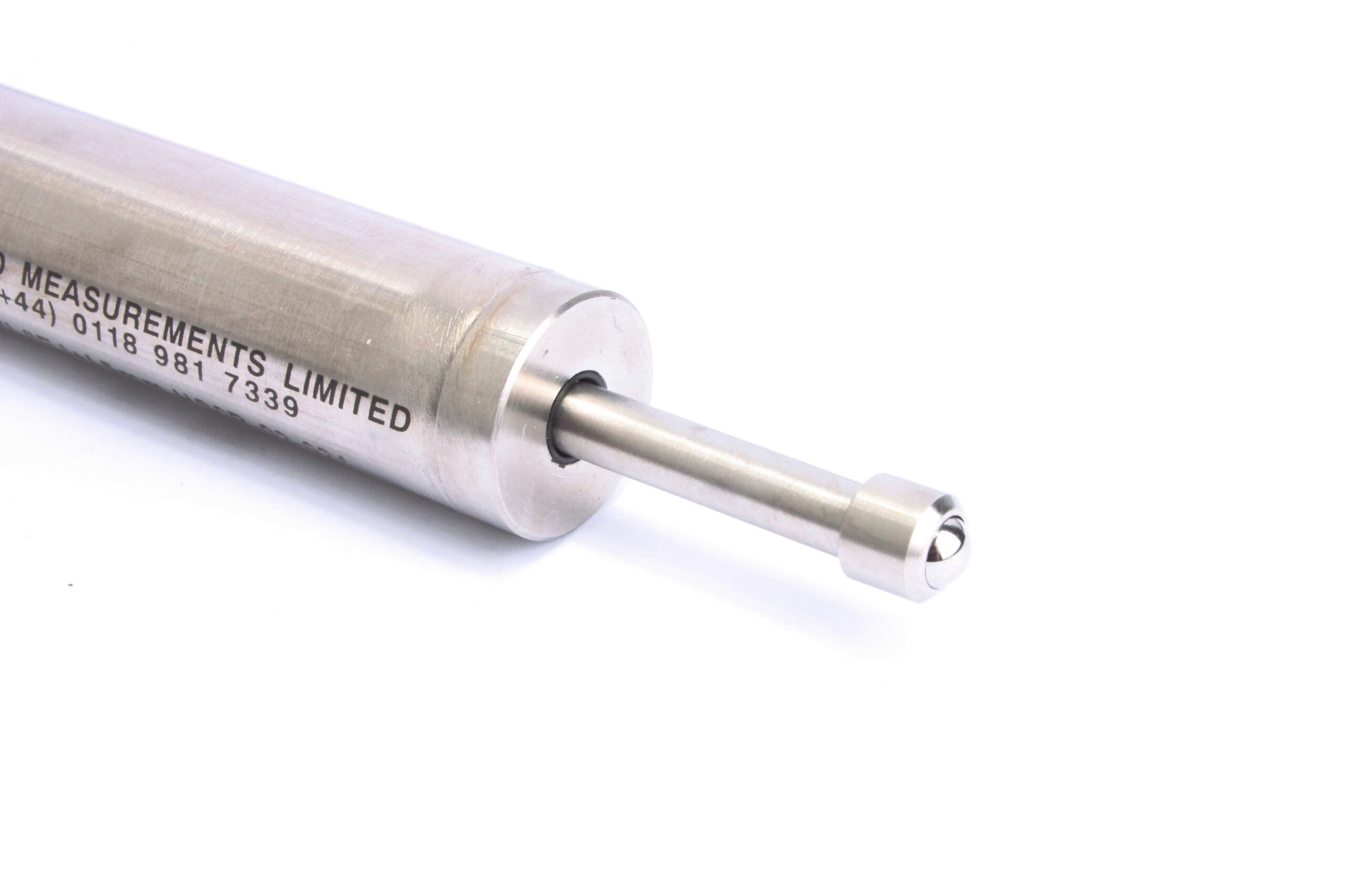

Industrial LVDT Displacement Transducer AML/IE
The AML/IE series of industrial LVDTs is designed for tough applications including heavy industrial, paper manufacturing and all types of dirty, wet or fully-submerged application and offers:
- Ranges from 0-1mm (±0.5mm) up to 0-1000mm (±500mm)
- IP65 Environmental Protection (IP68 optional)
- mV/V AC otuput or DC input/DC output (0-5Vdc, 0-10Vdc, ±2.5Vdc or 4-20mA available)
- Guided Core + Extension Rod, Spring Loaded and Rod-End Bearing Configurations
- Ø22.2mm Stainless Steel Body
- Accuracy ±0.5%/stroke range
-
Strain Gauge Displacement Sensor AML/SGD
The AML/SGD series of strain gauge-based displacement sensors is designed for applications where very high accuracy and stability are required and offers:
- Ranges from 0-5mm up to 0-100mm
- IP54 Environmental Protection
- mV/V output from 350ohm strain gauge bridge
- Spring Loaded Configuration
- Ø17.4mm Stainless Steel Body (Ø25.4mm on 100mm version)
- Accuracy ±0.1%/stroke range (±0.2% on 100mm version)
Email us or give us a call and we’ll do our utmost to find a suitable sensor for you.
